General information

MEASUREMENTS (HEIGHT X WIDTH):

410 X 375 MM – VISOR ON LOW POSITION
475 X 375 MM – VISOR ON HIGH POSITION

Smoke
REF.23158H

Clear
REF.23158W

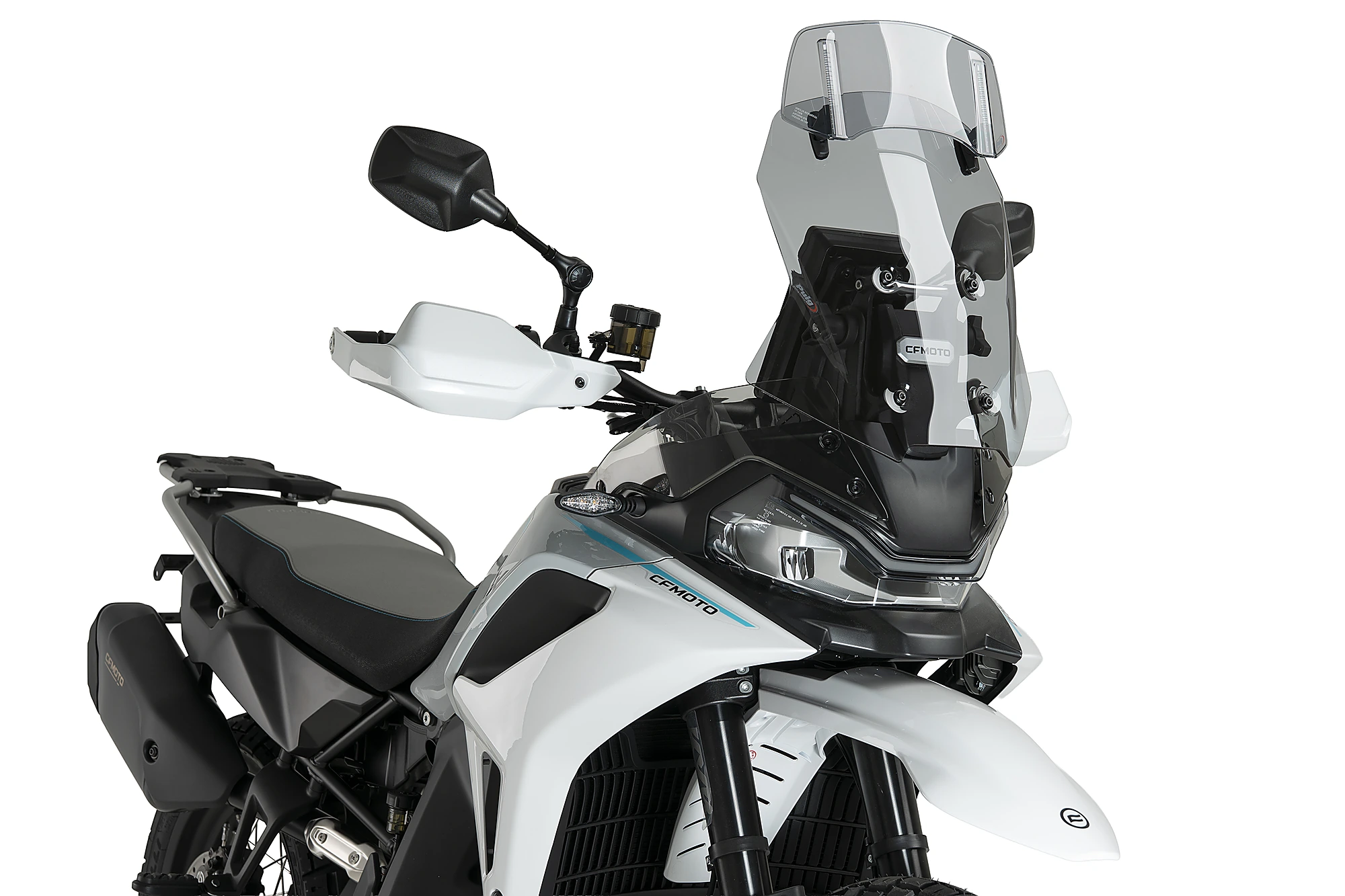

The Puig Touring windshield for the CFMOTO 1000 MT-X has been developed to provide greater aerodynamic protection and a high level of riding comfort, both for everyday commuting and long-distance touring. Its design, optimized through virtual wind tunnel testing, efficiently redirects airflow without compromising visibility or the motorcycle's sporty appearance.

The central upper section features a completely flat surface to improve visibility through the screen, while the lower side sections act as integrated deflectors, directing airflow away from the rider's hands and reducing wind pressure. Its carefully sculpted lines perfectly match the distinctive front end of the CFMOTO 1000 MT-X, following the unique shape of the headlight through two pronounced ribs that extend from the lower section to the top of the windshield, achieving seamless OEM-style integration.

The Ref. 22158 version, equipped with the Visor 2.0, provides even greater aerodynamic protection, especially for taller riders (1.90 m or above). Thanks to its adjustable height and angle, the visor allows airflow to be tailored to each rider's height, build and riding style, delivering outstanding comfort in every situation.

Available in clear, light smoke and dark smoke finishes.

Designed and manufactured entirely in Barcelona at Puig's facilities using the latest technologies and backed by more than 60 years of experience in motorcycle accessory development.

The Touring windshield is manufactured from high-quality 4 mm CN acrylic with a rounded edge, providing outstanding transparency, excellent impact resistance and long-lasting durability.

Its dimensions are 375 mm wide, 410 mm high and 100 mm deep, making it 110 mm taller than the original CFMOTO 1000 MT-X 2026 windshield.

Installation is quick and straightforward by following the instructions supplied by Puig and can be completed in approximately 15 minutes, without requiring advanced mechanical knowledge.

To ensure optimum performance, it is recommended to periodically check the tightening torque of the mounting hardware.

TÜV approved product.

Includes aerodynamic study and mounting instructions.

The Touring windshield has been developed to maximise rider aerodynamic protection by significantly reducing air pressure on the rider's torso and helmet. Puig's aerodynamic studies demonstrate a 67% improvement compared to the original CFMOTO 1000 MT-X windshield.

This reduction in wind pressure results in greater riding comfort, reducing rider fatigue, especially on long-distance journeys. On the version equipped with the Visor 2.0, the adjustable height and angle allow aerodynamic protection to be further optimised, adapting it to each rider's height and personal preferences.

Replace your motorcycle’s windscreen with PUIG’s touring windscreen. Manufactured in acrylic of 3-4 mm according to the motorcycle model to guarantee maximum protection from the wind, improving the aerodynamics of the piece and possible debries that may impact you during your ride. In addition, it comes with a variable visor that will redirect the wind even more while achieving a great sense of comfort on board your machine. This visor is fixed to the touring windscreen by screws, since the screen comes with the holes already made to facilitate assembly. Note: not all touring windscreen models come with a visor.

The windshield has a rounded contour of> = 2mm, complying with the TÜV regulations.

For assembly, PUIG provides instructions with mounting tips, so you can quickly enjoy the touring windscreen on your motorcycle.

The piece is available in smoked finish and also in transparent finish.

Please check the ABE carefully to see if this part is suitable for your motorcycle.
