Lower Deflectors Pista #8

Black
REF.22304N

Matt black
REF.22304J

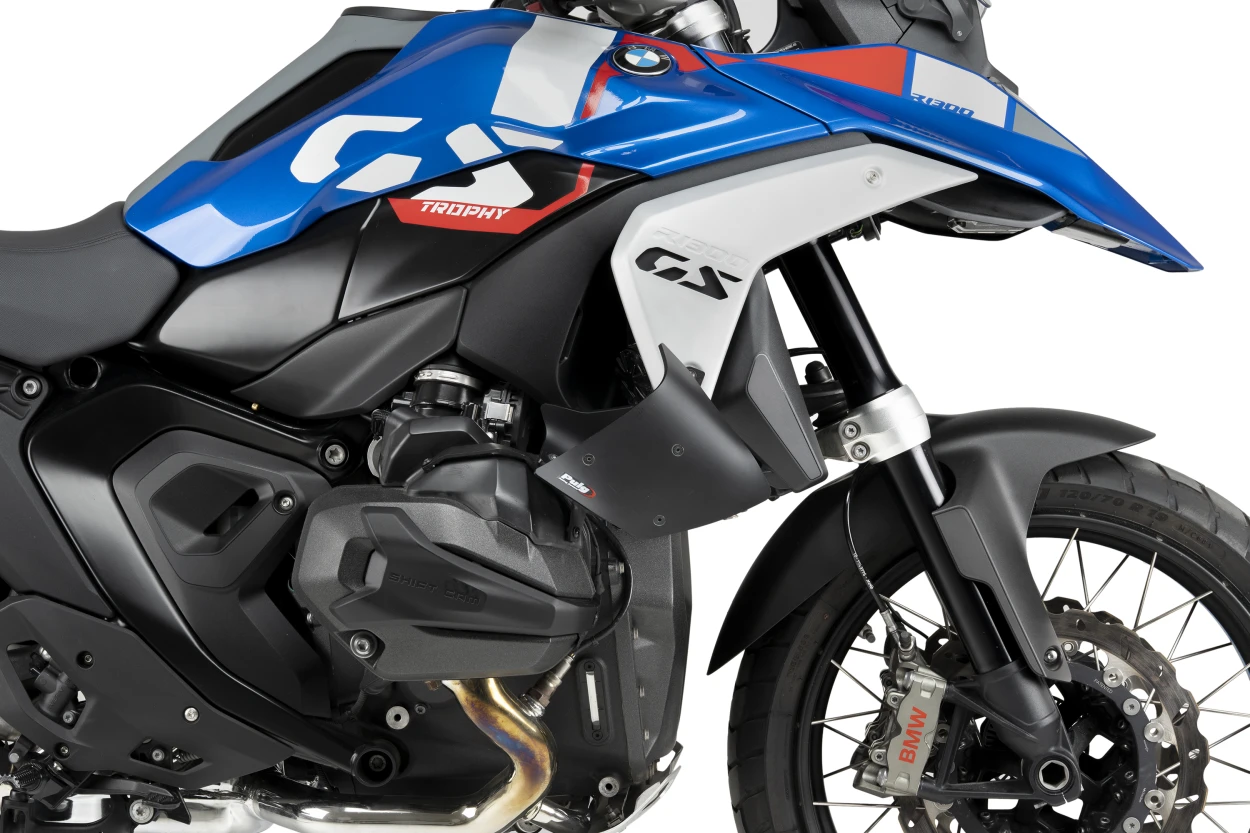

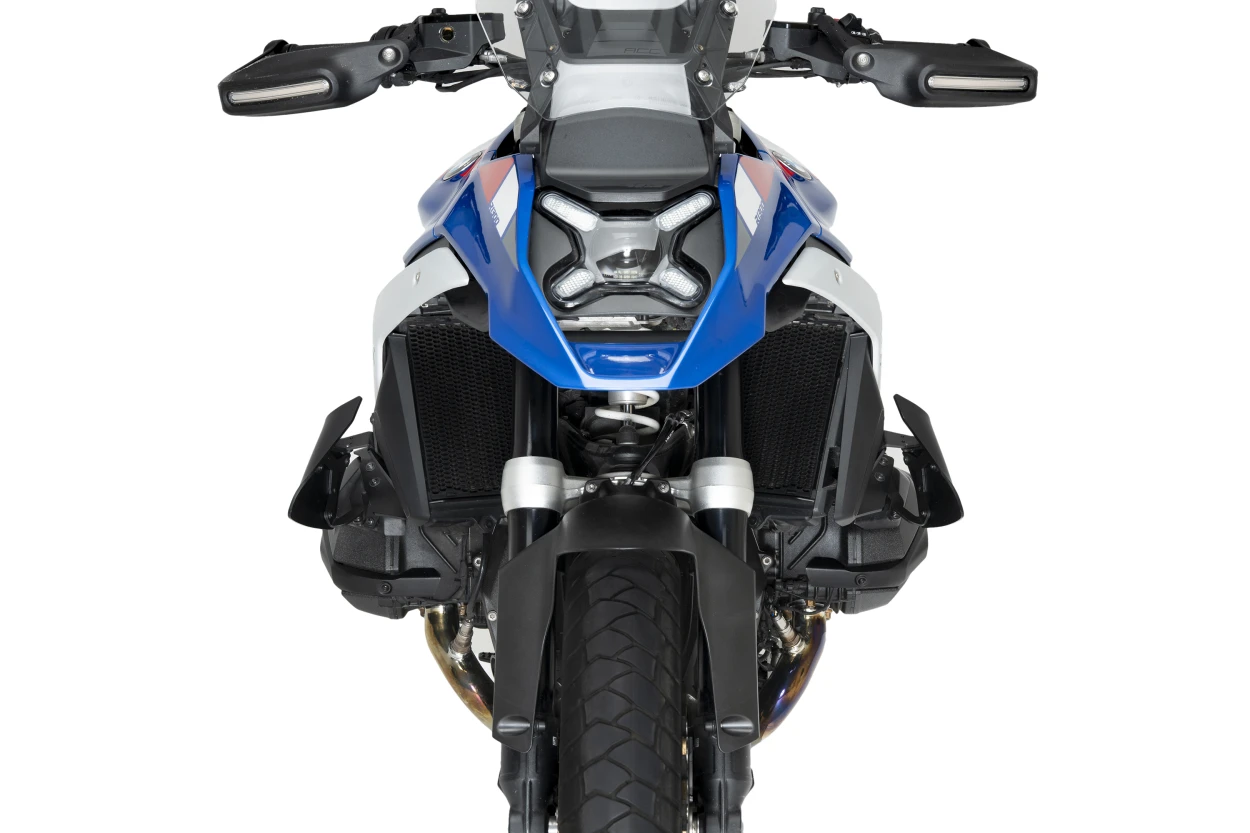

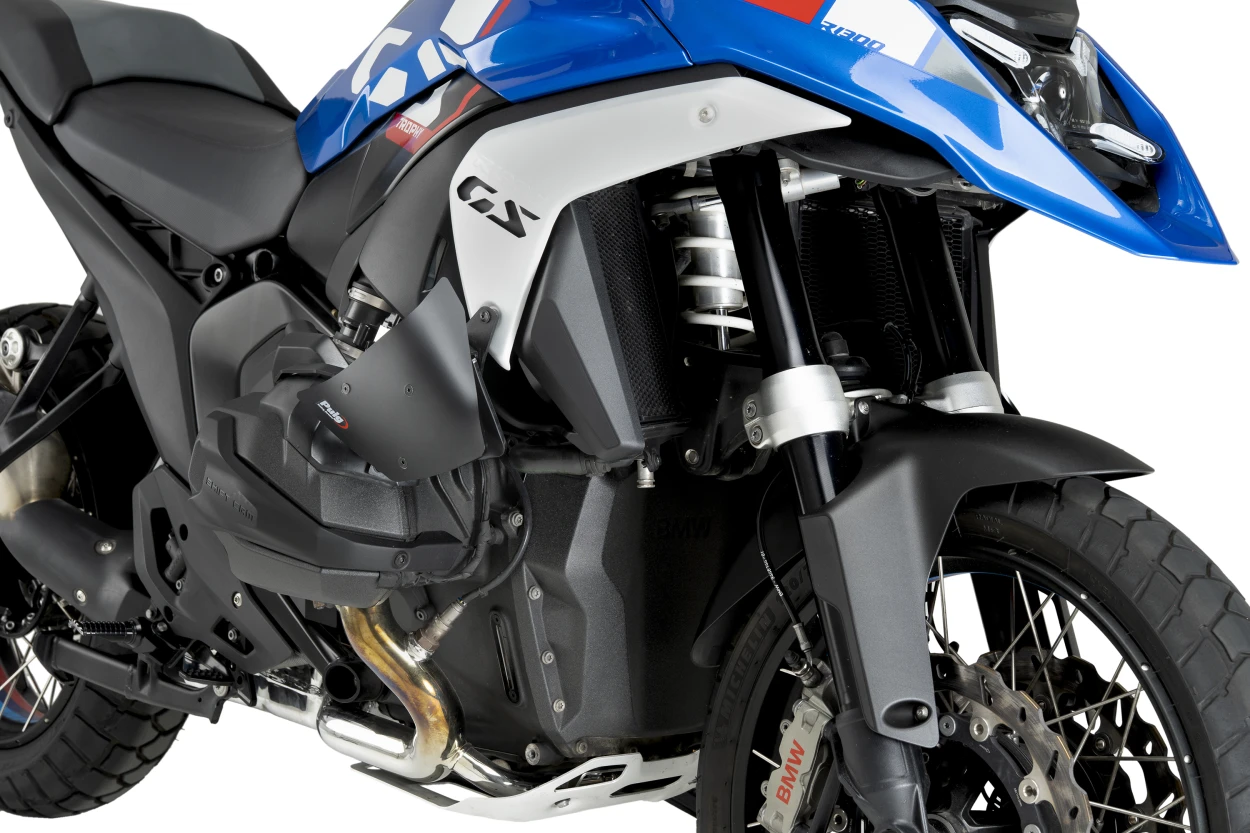

The adjustable side deflectors for the BMW R1300GS PISTA have been developed to improve rider comfort through an innovative three-position adjustable system. Their design integrates perfectly with the motorcycle, maintaining a clean aesthetic aligned with the model’s lines.
Thanks to their mechanism, they allow airflow adaptation depending on weather conditions and riding style: in the rest position they remain fully integrated; in the open position they channel air toward the engine to generate warmth in winter; and in the closed position they prevent hot air from reaching the rider in summer. A versatile solution that significantly enhances riding comfort all year round.

Designed and manufactured in Barcelona using advanced technologies to ensure lightness and strength.
Made of high-quality 4 mm acrylic with rounded edges for increased safety.
Includes 3 mm metal brackets with textured black finish, allowing adjustment in three positions.
Dimensions:
– Deflector: 159 mm width, 172 mm height, 55 mm depth
– Channel: 158 mm width, 101 mm height, 66 mm depth
Available in matte black finish.

Installation requires following step-by-step instructions, with an estimated installation time of approximately 30 minutes to ensure proper operation of the mechanism.

Not compatible with BMW R1300GS boxer covers available in the Puig catalog. Includes mounting instructions for correct installation.

Its design allows airflow management around the leg area, improving rider thermal comfort:
– Warm air channeling in winter
– Reduction of hot air in summer
– Protection from direct airflow
– Increased comfort on long rides

The Puig side deflectors serve a very particular dual function thanks to their adjustable mechanism, which allows them to be set in three different positions, adapting to the needs of each situation.

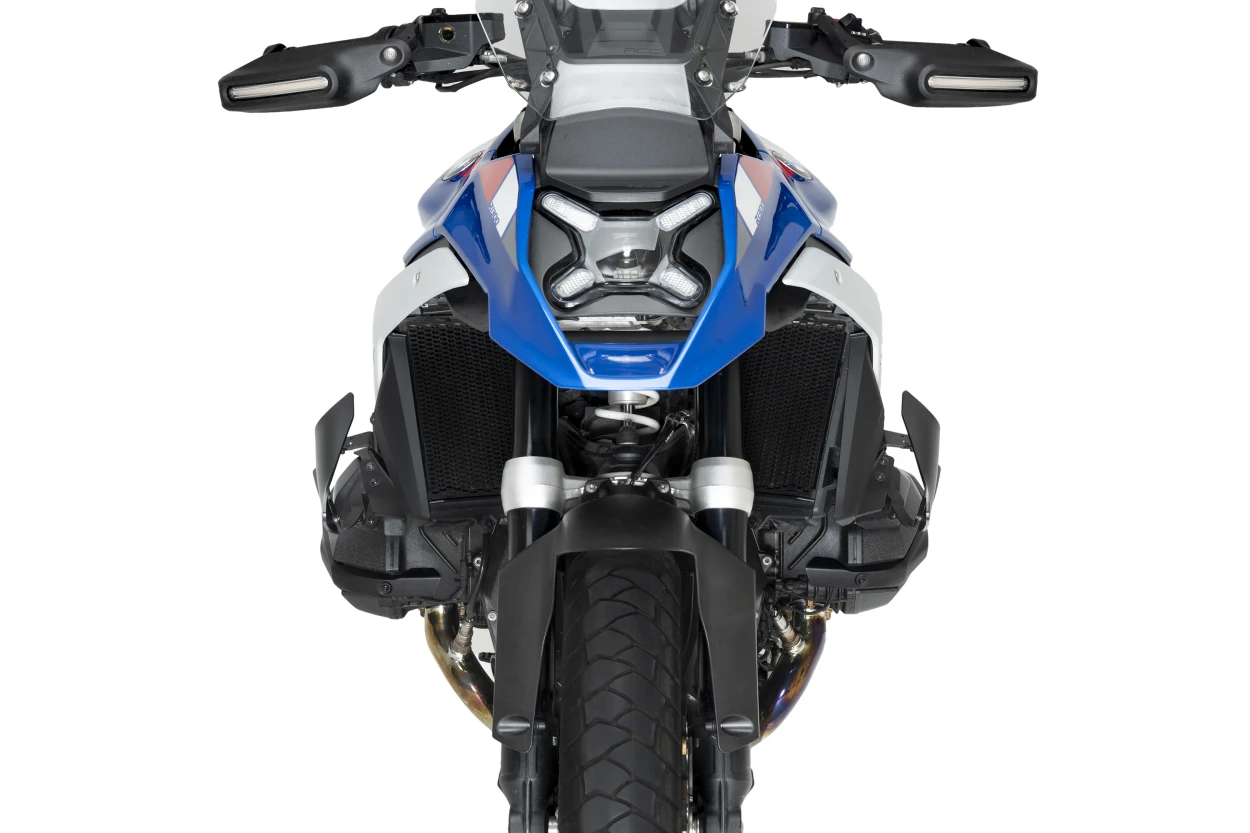

Rest position: the deflectors remain integrated and protected, in perfect harmony with the motorcycle’s design lines.

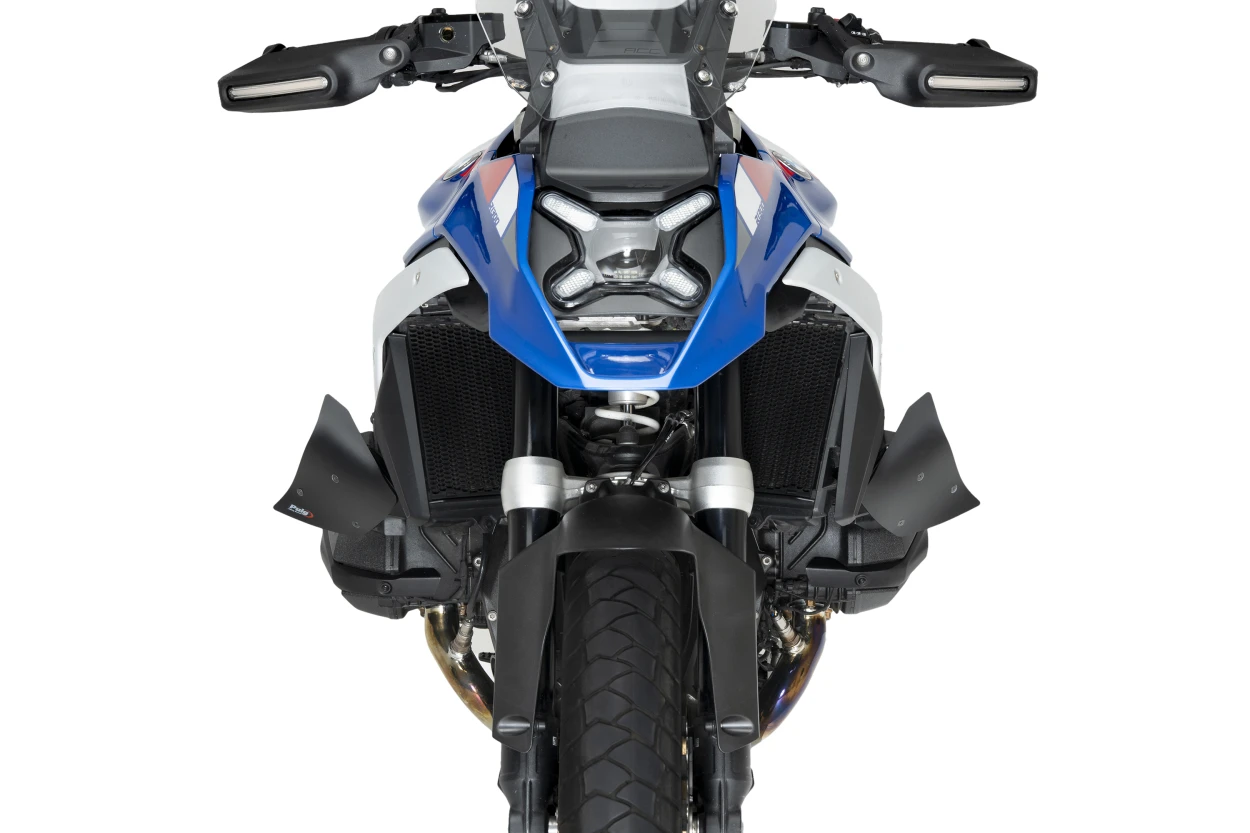

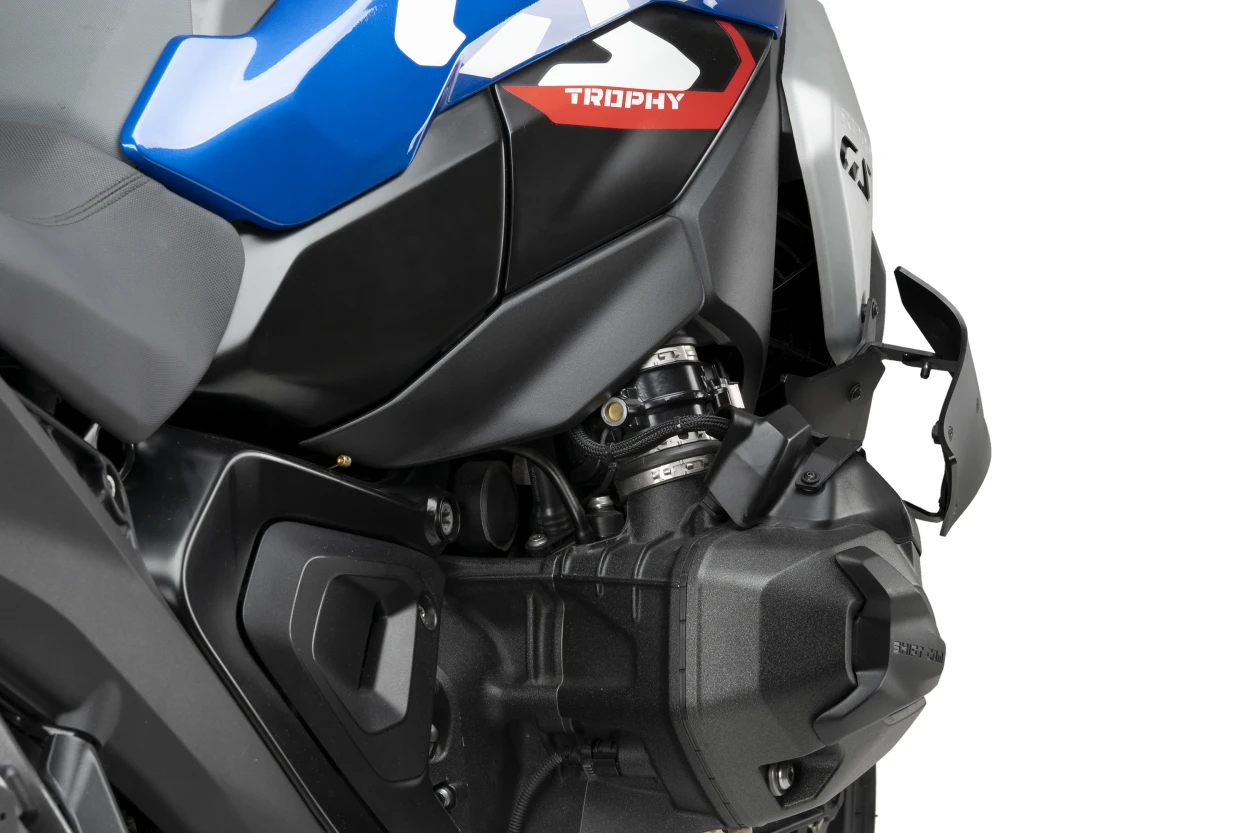

Open position (winter): they channel frontal air towards the engine area, taking advantage of the boxer’s heat to transmit it to the rider’s legs and provide greater comfort in cold climates.
Closed position (summer): they block the flow of hot air coming from the engine, preventing it from reaching the rider during the hottest months.
Aesthetically, they are available in matte black, matching the engine finish and blending with the different versions of the BMW R1300GS.

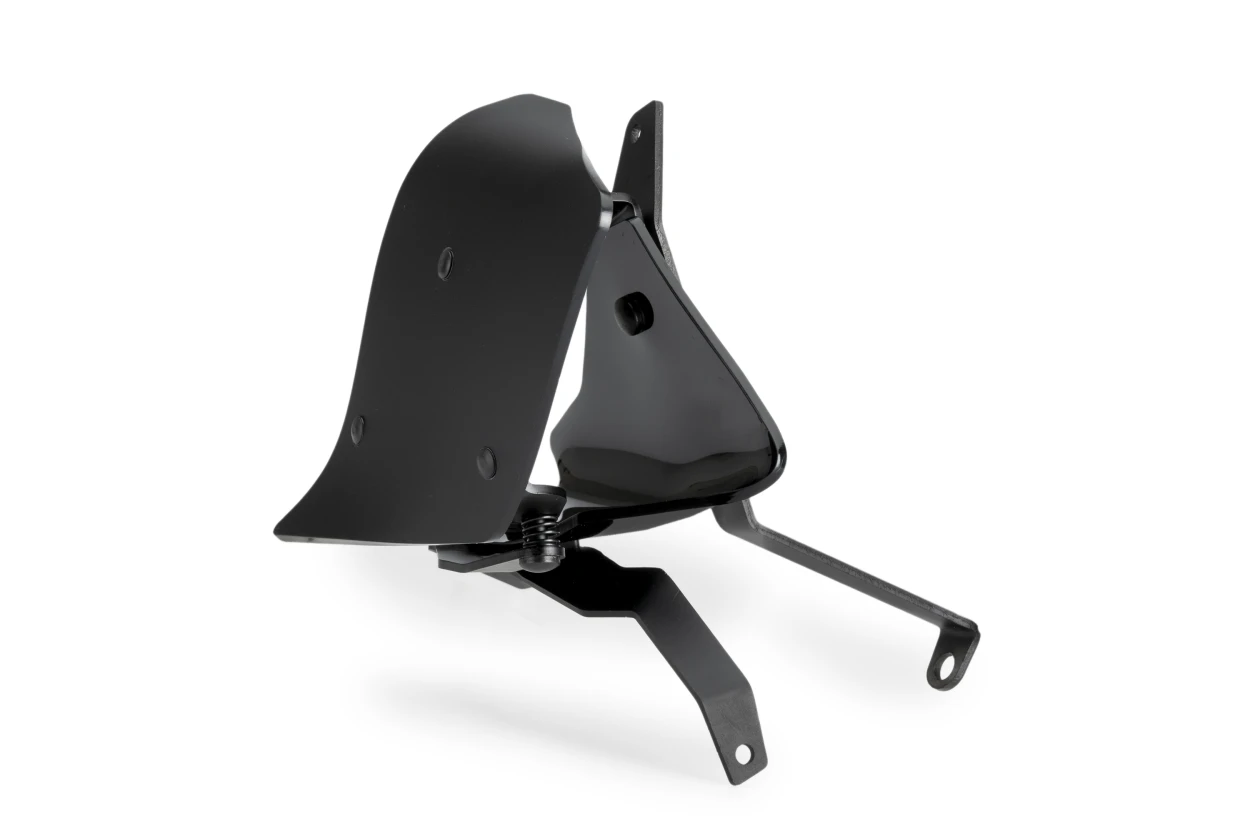

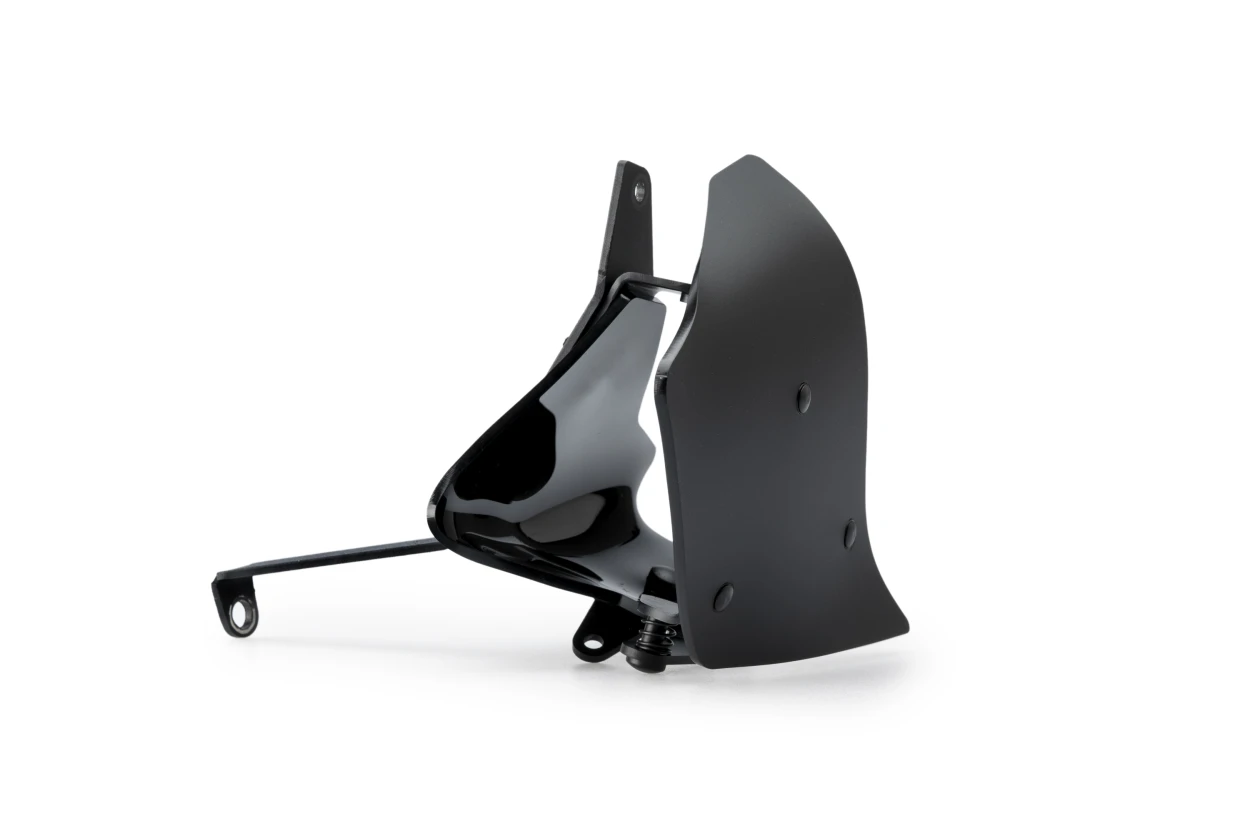

Made of 4 mm thick high-impact acrylic with rounded edges, they ensure strength and safety. They are fixed using 3 mm metal brackets finished in textured black, which allow adjustment in the three positions. The dimensions are:

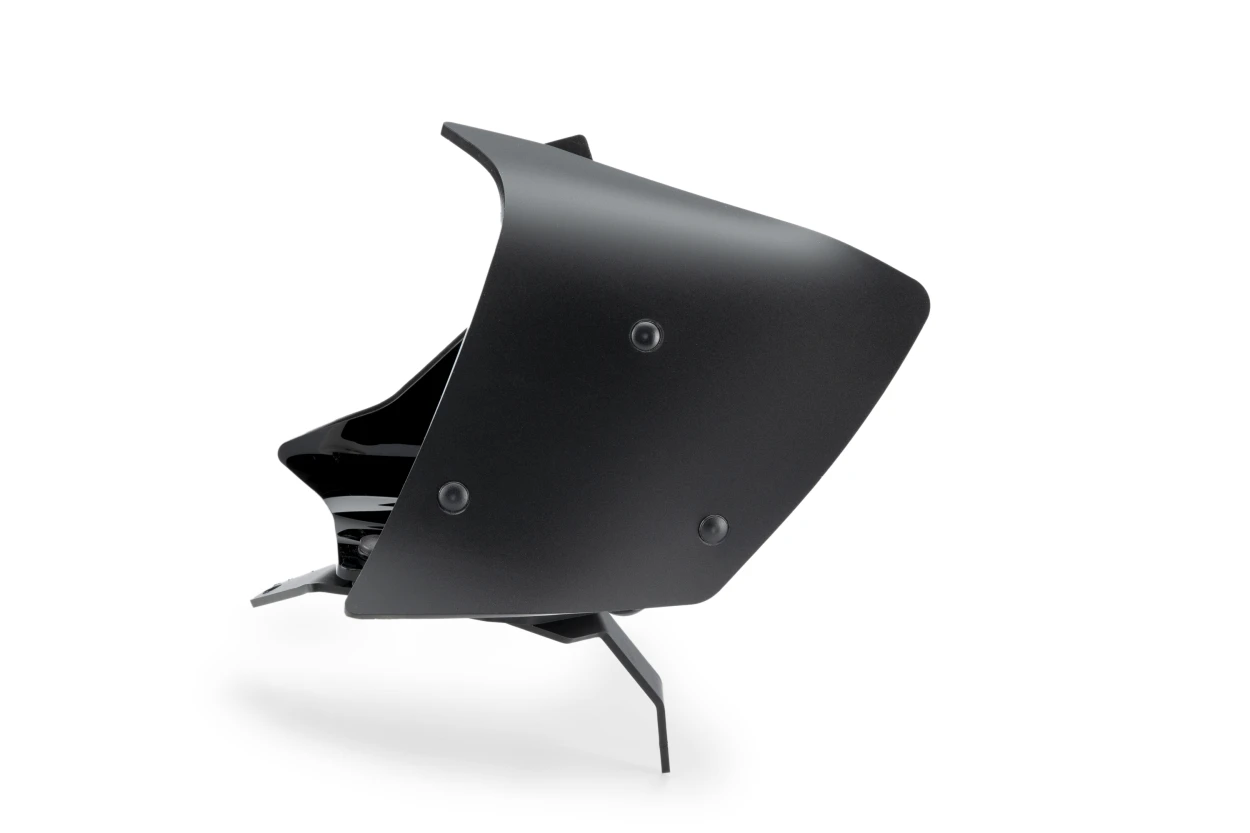

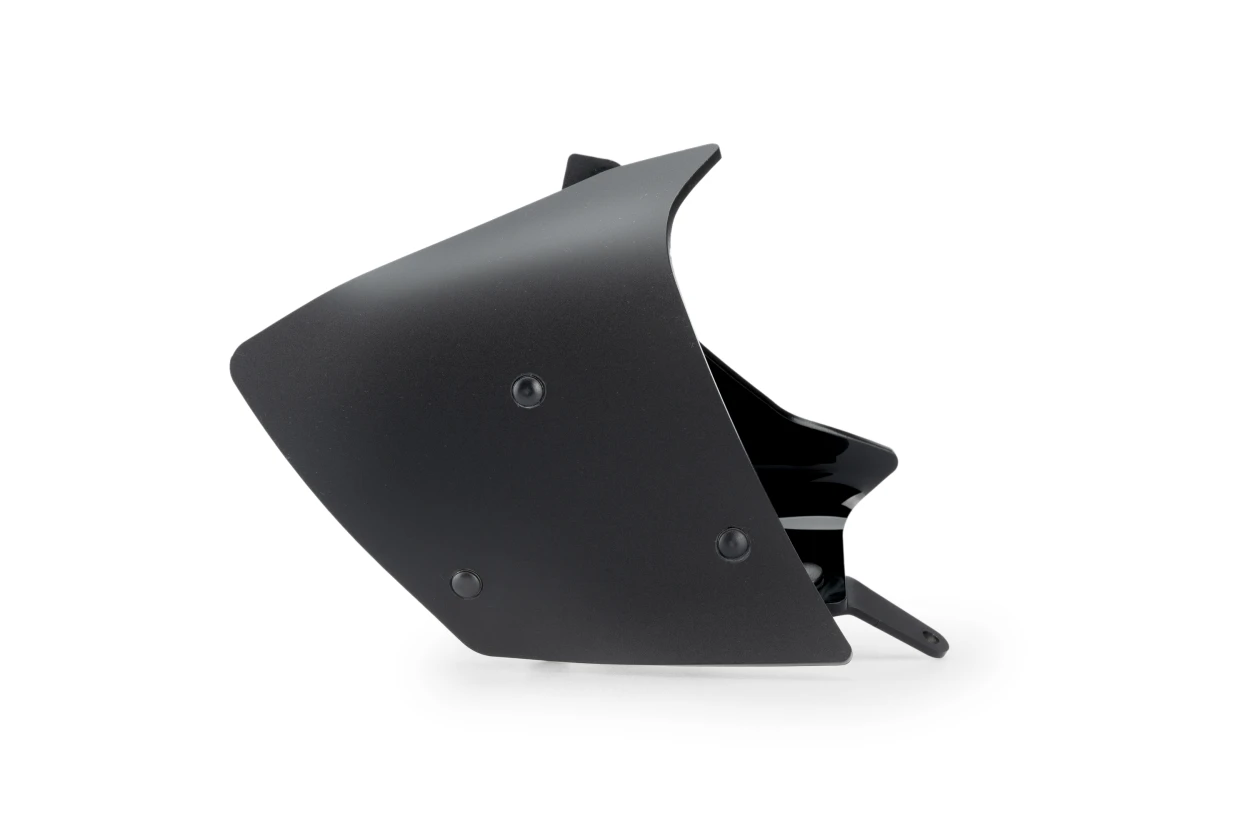

• Deflector piece: 159 mm (width) x 172 mm (height) x 55 mm (depth).

• Channel piece: 158 mm (width) x 101 mm (height) x 66 mm (depth).

Installation requires following the steps indicated in the instructions precisely, with an estimated time of about 30 minutes. It is important to note that they are not compatible with the R1300GS boxer covers available in the Puig catalog.

Designed and manufactured in Barcelona with the most advanced technologies, the adjustable Puig side deflectors not only enhance the motorcycle’s aesthetics but also improve rider comfort on long trips by deflecting or channeling airflow around the leg area, reducing fatigue both in winter and summer.
